Microscopes

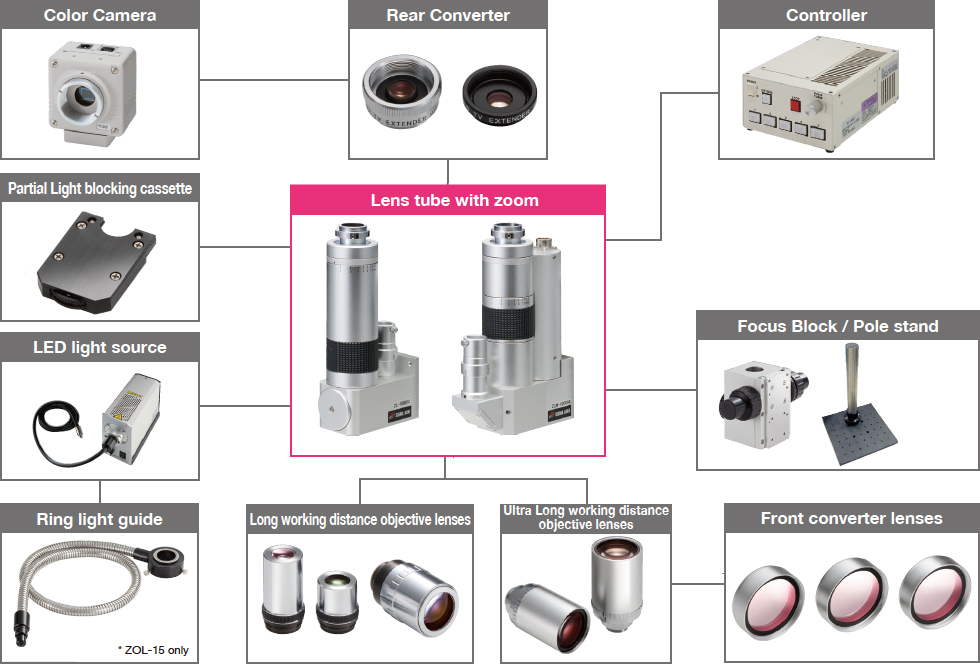

Just mounting the camera can change continuously the magnification from the image of the low magnification and
also get the image of high magnification.
It is suitable for observation of those with complex and dense structure, such as semiconductor devices, MEMS and so on.
Moreover, with the longest 500mm working distance, it is quite useful to observe inside of the high-temperature furnace or the vacuum chamber.

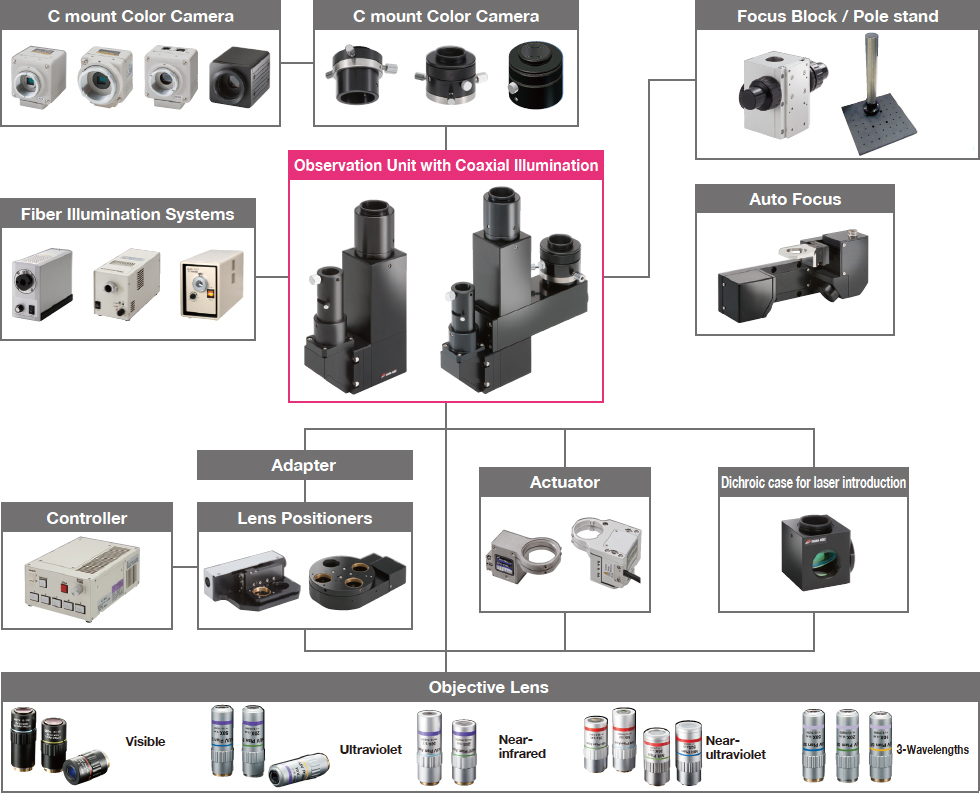

Observation unit with coaxial illumination

Attaching the objective lens for a microscope, it displays an enlarged image on the monitor or laptop PC by using the camera.
By using a compact barrel with ports for illumination, there is flexibility of installation, and it also can be incorporated into the production equipment such as a laser processing machine.
It is quite useful to observe the high magnification in particular.

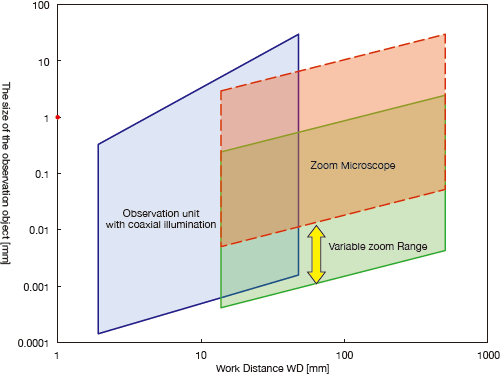

Performance comparison between the observation unit with coaxial illumination and zoom microscope

Between the size of the subject can be observed and the working distance, there is roughly a proportional relationship. In general, by increasing the magnification, WD will be shorter.

The observation unit with coaxial illumination is better for the observation of a high magnification because it is possible toreplace the objective lens and select WD and the magnification.
It does not have zoom function, but you can observe the fine structure of the sample in an excellent resolution.
However, when using the camera, it will be limited by the resolution of the camera and the monitor side.

The zoom microscope is inferior to the objective lens in the resolution, but by varying the magnification, it can project a size that is easily observed on the monitor.
For the observation size, there is no significant difference from the observation unit with coaxial illumination, you can select the very long WD.

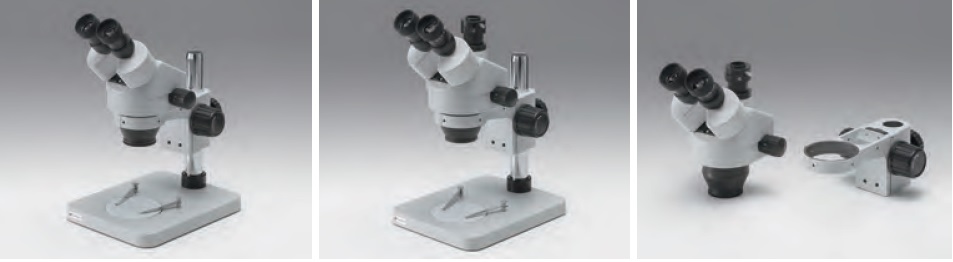

ZMS Binocular Microscope

It have long working distance. These can be used for making observations of sterically congested samples such as circuit boards ,or dynamic image of samples.
     ◦   Designed to continuously change magnification by zooming, smooth observations are fulfilled.
     ◦   Its longer filed of view makes it easier to make observations of uneven and complex samples.
     ◦   Not only standard binocular type with stand but also trinocular type with stand which has a port for connecting with camera is available. Additionally, we are
          preparing  for trinocular type without stand for incorporating in systems.
     ◦   Long working distance makes it possible to contact samples with tweezers or probes.
     ◦   It is possible to observe in wearing glasses because folding rubber eye guards are attached to ocular lens.

Please contact us if you need more assistance or advice
